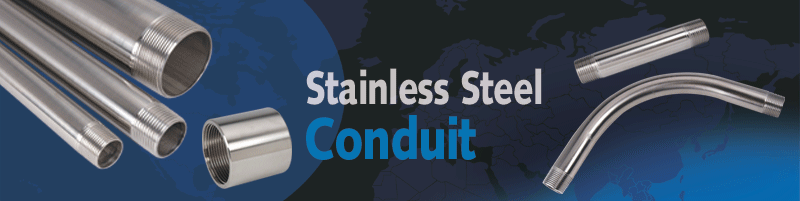

Stainless Steel Conduit
Gibson Stainless currently offers rigid (heavy-wall, Schedule 40) conduit which provides a means of protection for wiring and cable in electrical systems. Rigid conduit (RMC) is known for its ease of installation and durability and is NEC-approved for all locations, including hazardous.Conduit can be useful for many industries including food and beverage, wastewater treatment, pulp and paper, petrochemical, chemical processing, infrastructure, and marine.
304 & 316
Gibson Stainless offers the conduit (RMC) in two different stainless alloys; these alloys are most commonly referred to by their American Iron & Steel Institute (AISI) designations, which are 304 and 316 stainless steels.
AISI 316 stainless steel has a higher nickel content and benefits from the addition of molybdenum as an alloying element. These tweaks to the material chemistry give 316 stainless enhanced corrosion resistance with better protection against the initiation of pits/pitting and crevice corrosion, especially in environments where chloride levels are elevated.
Cutting, Bending, & Threading
Standard threaders can be used on stainless steel; it is normal to experience faster wear of the dies, especially in the larger sizes (2-1/2”, 3”, and 4”).
Standard benders can be used on stainless steel; it is normal to experience greater spring back in the larger sizes (2-1/2”, 3”, and 4”).
For more information on cutting, threading, and bending can be found in our Conduit Technical Resource.
Stainless Steel Conduit Accessories
Gibson Stainless offers a large selection of stainless steel conduit accessories including nipples, elbows, couplings, three-piece couplings, caps and floor flanges. All of the conduit accessories are offered in Type 316 SS; the nipples, elbows, and couplings are offered in Type 304 SS as well.
All Gibson Stainless products are designed to meet and exceed standard electrical industry practices to serve a variety of industries including food and beverage, wastewater treatment, pulp and paper, petrochemical, chemical processing, infrastructure, and marine.
Stainless Steel Conduit Bodies
Gibson Stainless offers a large selection of heavy-duty, cast CF8M (316 SS) stainless steel conduit bodies.
Conduit bodies are designed to make 90º bends, to change the route of conduit, and/or to make wiring pulls and connections. These Form 8 conduit bodies permit simple, easy, installation using ordinary hand tools. A flat back design provides extra wiring capacity. Gibson Stainless’ conduit bodies are 100% made in America.
Gibson Stainless currently offers conduit bodies in seven configurations: C, LB, LL, LR, T, TB, and X. Each conduit body is supplied complete with cover, gasket, and screws.
C, LB, LL, LR, T, TB Compliances:
- UL Listed for Canada and US (Standard 514A)
- UL File Number: QCIT.E300676
- Canada UL File Number: DWTT7.E300676
- Suitable for wet locations
Stainless Steel Pulling Elbows
Pulling elbows are designed for use with rigid conduit to make wiring pulls at 90° bends in a conduit system. Pulling elbows can aid in instances of sharp bends and allow a straight pull in either direction.
Each pulling elbow is supplied complete with Type 316 SS cover, neoprene gasket, and Type 316 SS screws.
Material:
-Body: CF8M (316 SS)
-Cover and Screws: 316 SS
-Gasket: Neoprene
100% Made in USA
Stainless Steel Device Boxes
Device boxes are used to wire devices such as switches and receptacles, act as pull boxes, and connect conduit. Device boxes are made with cast CF8M (316 SS) stainless steel. Gibson Stainless currently offers the deep-style device boxes with 3/4" NPT threaded hubs. Device boxes are often used with Gibson Stainless device box covers which are offered in three styles: blank, receptacle, and switch.
Device boxes are offered in six styles: FD, FDC, FDS, FDX, FDA, and the double-gang FDDX.
Gibson Stainless device boxes exceed standard electrical industry practices to serve a variety of industries including food and beverage, wastewater treatment, pulp and paper, petrochemical, chemical processing, infrastructure, and marine. All our device boxes are 100% made in America.
/Asset/Stainless-Steel-Device-Boxes.pngStainless Steel Hazardous Location Fittings
Hazardous locations require specially designed products and unique installation techniques to mitigate the risks of flammable liquids, gases, vapors, and other substances. Gibson Stainless offers products designed to keep explosions and flammable substances contained within the fitting, which prevents hazards from spreading to the rest of the conduit system. These products include GUA Series Conduit Bodies, Unions, and EYS Sealing Fittings.
Our stainless steel hazardous location fittings products are designed to exceed standard electrical industry practices to serve a variety of industries including food and beverage, wastewater treatment, pulp and paper, petrochemical, chemical processing, infrastructure, and marine.
/Asset/Stainless-Steel-Hazardous-Location-Fittings.pngStainless Steel Cord Grip Connectors
Cord grip connectors are designed to provide a means of terminating flexible cord or cable in devices, boxes, or enclosures.
Cord grip connectors provide a weather-tight seal and, when specified with a stainless steel mesh grip, prevent the transfer of tension from the cable to the terminals or joints contained within the device, box, or enclosure. In addition to pull-out protection, the strain relief mesh also helps to prevent over-bending and kinking of the cord.
Stainless Steel Conduit Hubs
Gibson Stainless offers a selection of standard and grounding conduit hubs and locknuts. These fittings are designed for use with threaded conduit and provide a means of connecting conduit to various boxes and enclosures. The hubs and locknuts are 100% made in America and offered in Type 316 SS. The conduit hubs are a cast (CF8M) product, providing a heavy-duty weight.
Our conduit hubs and locknuts are designed to exceed standard electrical industry practices to serve a variety of industries including food and beverage, wastewater treatment, pulp and paper, petrochemical, chemical processing, infrastructure, and marine.
/Asset/Stainless-Steel-Conduit-Hubs.pngStainless Steel Liquidtight Flexible Conduit & Connectors
Stainless steel liquidtight flexible conduit and connectors protect wiring and cable when making connections to rigid electrical systems in wet or dry locations.
Gibson offers liquidtight flexible metal conduit (LFMC) in two styles:
- 316 SS Core with PVC Jacket
- 316 SS Core with Antimicrobial, Food-Grade PVC Jacket
The liquidtight connectors are offered in three configurations: Straight, 45º, and 90º in both standard and grounding styles. A Type 316 SS inside ferrule provides extra corrosion resistance on the inside of the fitting, which helps the entire product to last longer.
Gibson Stainless liquidtight conduit and connectors are Made in USA.
/Asset/Liquidtight_Flexible_Conduit_Connectors.pngStainless Steel Plugs, Reducing Bushings & Enlargers
Gibson Stainless offers Type 316 SS plugs, reducing bushings, and enlargers to be used with conduit fitting ports. Two different styles of the plugs and reducing bushings (with and without a hex head) are available.
Our plugs & reducing bushings products are designed to exceed standard electrical industry practices to serve a variety of industries including food and beverage, wastewater treatment, pulp and paper, petrochemical, chemical processing, infrastructure, and marine.
/Asset/Stainless-Steel-Plugs-and-Reducing-Bushings.pngStainless Steel Straps, Hangers & Clamps
Gibson Stainless offers a large selection of Type 316 SS straps, hangers and clamps used to support and run conduit along walls, ceilings, flanges, and other surfaces.
Gibson Stainless’ straps, hangers and clamps are designed to exceed standard electrical industry practices to serve a variety of industries including food and beverage, wastewater treatment, pulp and paper, petrochemical, chemical processing, infrastructure, and marine.
/Asset/Straps Hangers Clamps.pngStainless Steel U-Bolts & Plates
Gibson Stainless offers 316 stainless steel u-bolts and u-bolt plates to run and support conduit in electrical systems. Two different styles of u-bolts are offered with corresponding u-bolt plates (sold separately).
Our U-bolts exceed standard electrical industry practices to serve a variety of industries including food and beverage, wastewater treatment, pulp and paper, petrochemical, chemical processing, infrastructure, and marine.
/Asset/Stainless-Steel-U-Bolts-and-Plates.pngStainless Steel Beam Clamps
Gibson Stainless offers various styles of Type 316 SS beam clamps which provide a means of attachment to a structural member without having to drill holes. The three styles of beam clamps offered are the 2000 Series Beam Clamp, 2100 Series Beam Clamp, and the Junior Top Beam Clamp.
Gibson Stainless’ beam clamp products are designed to exceed standard electrical industry practices to serve a variety of industries including food and beverage, wastewater treatment, pulp and paper, petrochemical, chemical processing, infrastructure, and marine.
/Asset/Stainless-Steel-Beam-Clamps.pngStainless Steel Threaded and Unthreaded Rod
Also known as slick rod or hanger rod, stainless steel unthreaded rod can be threaded in the field to fit specific applications and provides a means of hanging or suspending conduit systems, piping, strut, etc. Unthreaded rod is often used in Food & Beverage facilities where exposed threads are a concern.
Gibson Stainless offers threaded rod in sizes 1/4", 3/8", and 1/2" in 10 foot lengths.
Material: 316 SS
100% Made in USA
Stainless Steel Strut & Accessories
Gibson Stainless offers struts and various accessories that provide the framework and support for conduit systems. Accessories such as strut straps, post bases, spring nuts, plates, and angles are used to aid in making connections within a strut system.
All Gibson Stainless struts and accessories are designed to exceed standard electrical industry practices to serve a variety of industries including food and beverage, wastewater treatment, pulp and paper, petrochemical, chemical processing, infrastructure, and marine.
/Asset/Stainless-Steel-Strut-Accessories.pngStainless Steel Grounding Rod & Clamps
Gibson Stainless offers ground (ing) rods in a variety of sizes and lengths, in both 304 and 316 SS. Type 316 SS ground rod clamps are also offered to connect ground wire to the ground rod.
The grounding rod and clamps products are designed to exceed standard electrical industry practices to serve a variety of industries including food and beverage, wastewater treatment, pulp and paper, petrochemical, chemical processing, infrastructure, and marine.
/Asset/Stainless-Steel-Grounding-Rods-and-Clamps.pngStainless Steel Anchors & Hardware
Gibson Stainless offers a large selection of stainless steel anchors and hardware in various sizes. All of the anchors and hardware are offered in Type 316 SS.
The anchors and hardware products are designed to exceed standard electrical industry practices to serve a variety of industries including food and beverage, wastewater treatment, pulp and paper, petrochemical, chemical processing, infrastructure, and marine.
/Asset/Stainless-Steel-Hardware.pngStainless Steel Chase Nipples
Chase nipples, also known as box connectors, are used with a coupling to connect conduit to a box or enclosure or to connect two boxes side by side or back to back with a locknut.
Material: 316SS
Standards: ASTM A479
100% Made in USA
