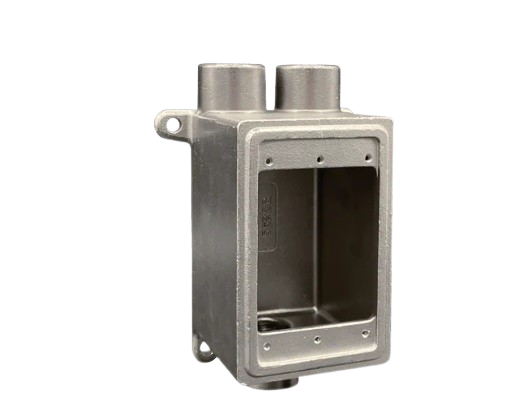

Device boxes are used to wire devices such as switches and receptacles, act as pull boxes, and connect conduit. Gibson Stainless currently offers the deep-style device boxes.
100% Made in USA
Internal grounding screw standard; mounting feet standard.

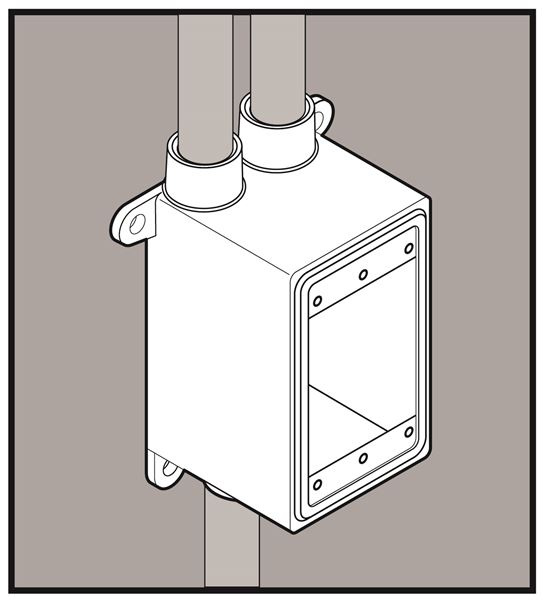

Used to wire devices such as switches and receptacles, act as pull boxes, and connect conduit.
100% Made in USA
Internal grounding screw standard; mounting feet standard.
Used to wire devices such as switches and receptacles, act as pull boxes, and connect conduit.
Unit of Measure
Style |
N/A FDCC |

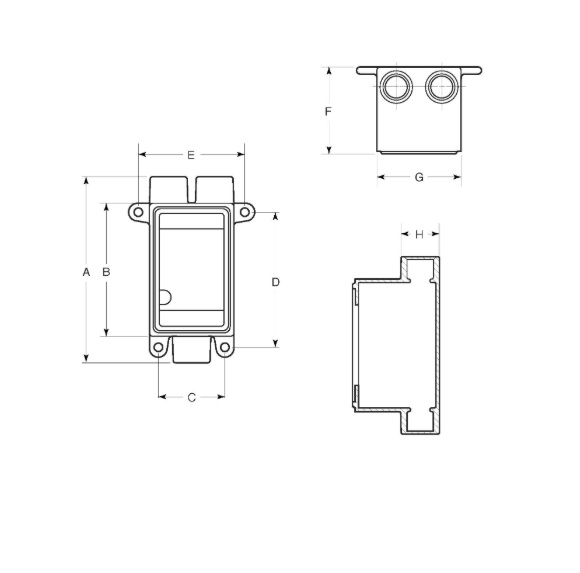

Dimension A |
N/A 6.55 in |
Dimension B |
N/A 4.67 in |
Dimension C |
N/A 2.34 in |
Dimension D |
N/A 4.71 in |
Dimension E |
N/A 3.67 in |
Dimension F |
N/A 2.94 in |
Dimension G |
N/A 2.96 in |
Dimension H |
N/A 1.34 in |
Country of Origin |
N/A 100% Made in USA |
Hub Configuration |
N/A 3 hubs (2 on top of the box; 1 on the bottom) |
Body |
N/A CF8M (316 Stainless Steel) |
Internal Grounding Screws |
N/A 316 Stainless Steel |
Trade Size |
N/A 3/4 in |
Short Item Description |
N/A 3/4" FDCC Single Gang Device Box |
Application |
N/A
|
